[Paper Note] π0: A Vision-Language-Action Flow Model for General Robot Control

π0: A Vision-Language-Action Flow Model for General Robot Control

TL;DR

• Key ideas:
  • Integrate Vision-Language Model (VLM) visual-semantic knowledge into robot control.
  • Use flow matching to represent continuous, high-frequency action chunks.
  • This achieves fine-grained and coherent action generation.
  • Utilize cross-embodiment data for generalization across different robots.
• slipt pre-training and post-training in robotics is similar to LLM’s pretrain/finetune/align approach:
  • Pre-training learns broad knowledge.
  • Post-training learns specific and stable strategy.

• Experience in other fields shows that pre-training a general vision-language model on diverse datasets, then fine-tuning it for specific tasks, outperforms training solely on specific tasks.
• This approach can, to some extent, alleviate data scarcity issues because generalist models have many more data sources, including non-robot sources.
• For robustness, diverse datasets may contain corrections and recovery behaviors.
• Therefore, generalist models may solve problems related to data availability, generalization, and robustness.

There are three main challenges:

• Large-scale datasets and pre-training.
• The right model architectures that are highly compatible yet good enough for specific tasks.
• The right training recipe.

Similar to language model training, our method is divided into two phases: pre-training and post-training.

• Pre-training allows the model to learn various tasks at rudimentary proficiency and follow language commands.
• For complex and dexterous tasks, we then employ a post-training procedure.

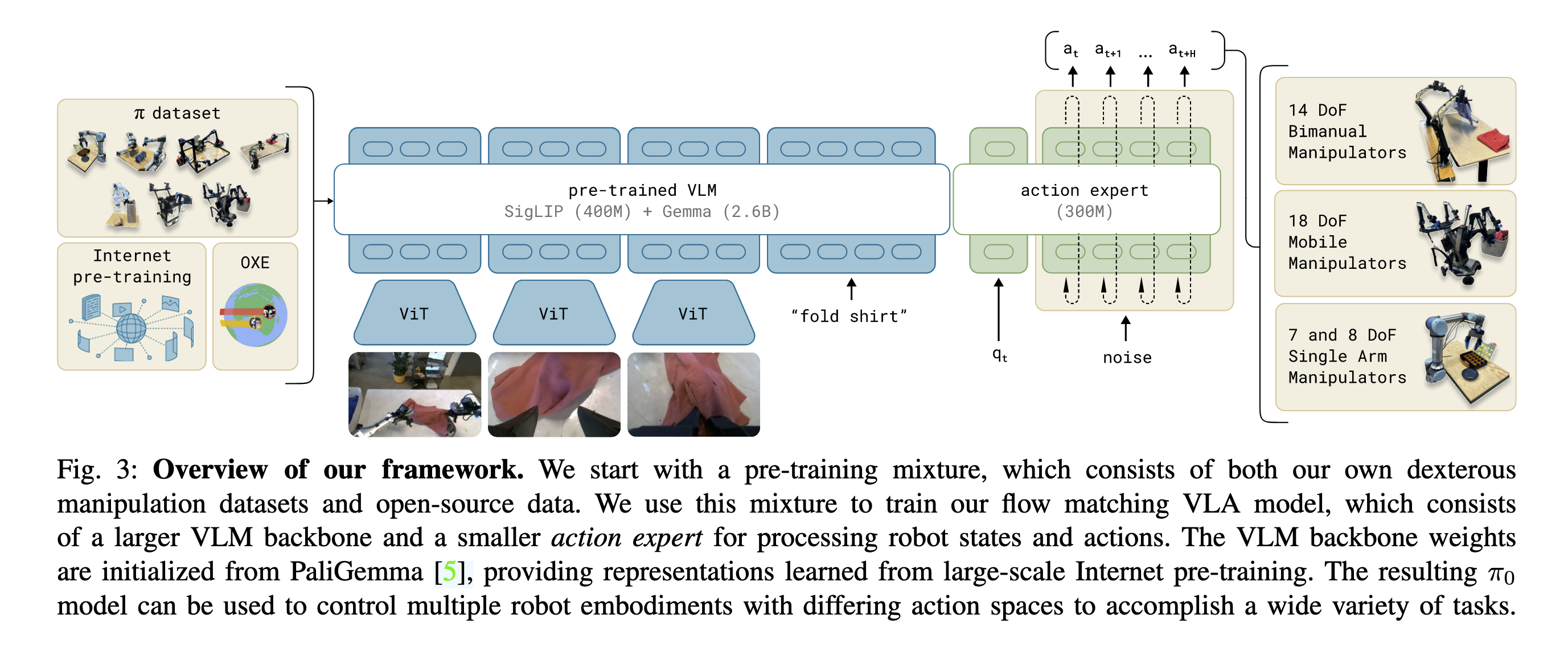

Model

• We use PialiGemma as the Vision-Language Model (VLM).
• In addition to images and text as conditions, we also include proprioceptive state.
• We add an extra set of parameters for flow matching to denoise the action sequence.
• This part primarily references “Transfusion: Predict the next token and diffuse images with one multi-modal model.”
• However, unlike Transfusion, we separate the VLM and the flow model here.
• This is a Flow model, not a diffusion model. It predicts a vector field, not a score function.

The model predicts $p(A_t|o_t)$, where $A_t = [a_t, a_{t+1}, \ldots, a_{t+H-1}]$ is the action chunk to be predicted, and $H$ is the length of the action chunk, with $H=50$.

• During inference, we use 10 steps.
• The action model size is 300M, while PialiGemma is 3B.

Data and Training

• Pre-training data should be as diverse as possible, even if some data quality is not high. Intuitively, diverse (but lower quality) pre-training data allows the model to recover from mistakes and handle highly varied situations.
• Approximately 10,000 hours of data are used.
• Post-training data should be of the highest possible quality.

Pre-training Data

• 9.1% from open-source datasets:
  • OXE: Open X-Embodiment: Robotic learning datasets and RT-X models
  • BridgeData v2: A dataset for robot learning at scale
  • DROID: A large-scale in-the-wild robot manipulation dataset
• Robots and tasks in these datasets typically have one or two cameras and use low-frequency control (between 2 and 10 Hz).
• However, these datasets cover a wide range of objects and environments.

Our Own Datasets: 903 million timesteps, 68 tasks.

• 106 million steps are from single-arm robots.
• 797 million steps are from dual-arm robots.
• Tasks are more complex than simple noun-verb combinations, for example, “bussing a table,” which requires placing various items in designated locations.

To prevent some tasks from being overrepresented, the weight for each task-robot combination is $n^{0.43}$, where $n$ is the number of samples for that category.

Seven Robot Types Used:

• UR5e: An arm with a parallel jaw gripper, with a wrist-mounted and over-the-shoulder camera.
• Bimanual UR5e.
• Franka.
• Bimanual Trossen.
• Bimanual ARX & Bimanual AgileX.
• Mobile Trossen & Mobile ARX.
• Mobile Fibocom.

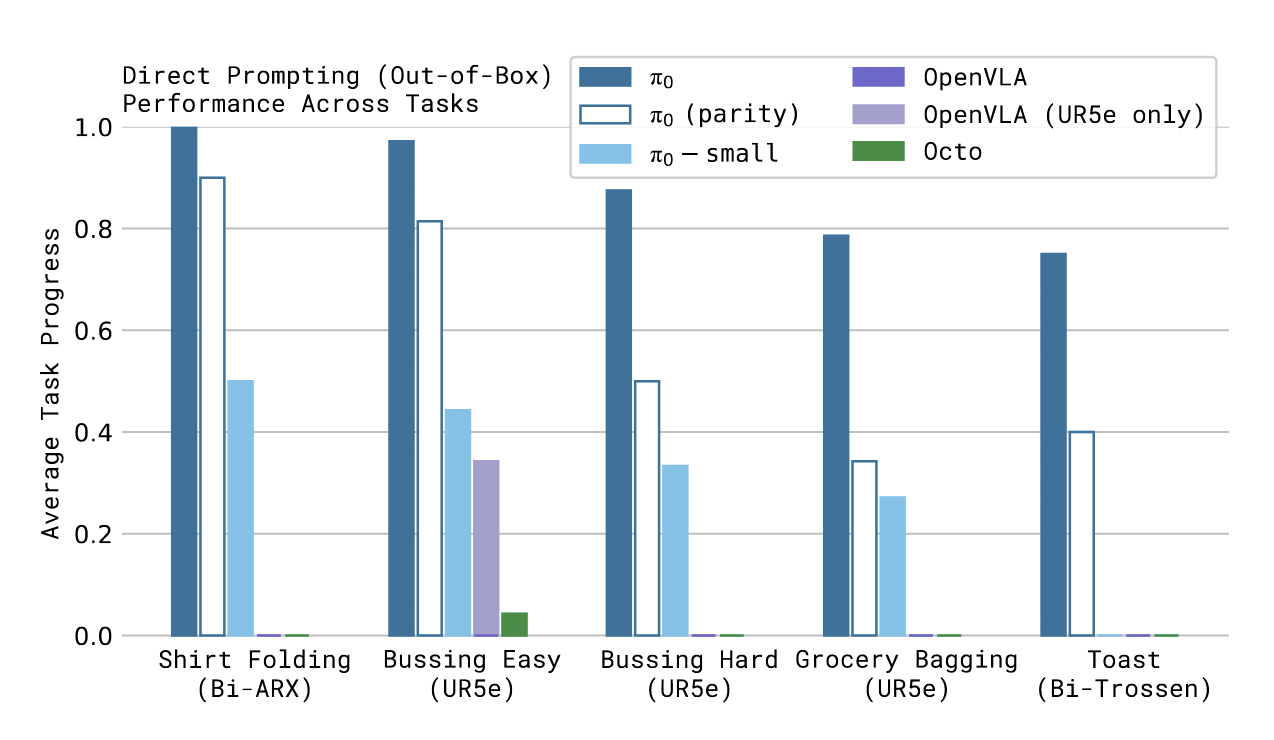

Base Model Performance

How well does $\pi_0$ perform after pre-training on a variety of tasks present in the pre-training data?

Comparison with Other Models:

• $\pi_0$-small: Does not use VLM initialization, uses DistilBERT as text encoder, and a smaller pre-trained ViT as image encoder. It has 470M parameters.
• OpenVLA, 7B: Uses all our datasets but with fewer epochs.
• Octo, 93M: A generalist model, not VLA but a diffusion model. Uses all our datasets but with fewer epochs.
• $\pi_0$ parity: Uses the same number of epochs as OpenVLA and Octo for fair comparison.

Results:

• $\pi_0$ significantly outperforms baseline models on more complex tasks.
• $\pi_0$ parity still outperforms other baselines, demonstrating the effectiveness of its model architecture.
• $\pi_0$-small outperforms OpenVLA and Octo but is not as good as $\pi_0$ parity, highlighting the importance of VLM.

Language Following Ability

• We compare only $\pi_0$ and $\pi_0$-small.
• $\pi_0$ significantly outperforms $\pi_0$-small in language following accuracy. VLM initialization substantially improves the model’s ability to understand and execute intermediate language steps.

Three Variants of Instructions:

• Flat: Direct command, e.g., “bag the groceries.”
• Human: Step-by-step intermediate language instructions provided by human experts.
• High-level VLM policy: Intermediate language instructions generated by a VLM.

Findings:

• $\pi_0$-small cannot learn useful intermediate steps from human expert instructions, whereas $\pi_0$ can.
• The high-level VLM policy performs slightly worse than human expert instructions.

Learning New Dexterous Tasks

Three Categories of Tasks:

• Easy: Similar to tasks in the pre-training data, e.g., UR5e stack bowls, towel folding.
• Medium: “Tupperware in microwave” – involves an unseen object (microwave). Introduces new objects.
• Hard: Significantly different from pre-training, e.g., paper towel replacement, Franka items in drawer.

Overall:

• Fine-tuning based on $\pi_0$ generally outperforms other methods, especially showing stronger data efficiency when fine-tuning data is limited (e.g., 1 hour).

Compare with or without Pre-training

Can training only on fine-tuning data achieve the same performance as fine-tuning $\pi_0$?

Those tasks are complex, long-duration, and require multiple decisions and long-term planning.

Let’s use “$\pi_0$” to refer the model finetuned on pre-trained $\pi_0$.

Let’s use “$\pi_0$-only” to refer the model pretrained only on fine-tuning data.

Findings:

• For tasks included in the pre-training data, $\pi_0$ significantly outperforms the $\pi_0$-only
• For tasks not included in the pre-training data, $\pi_0$ still leads, but the gap is smaller.

reference

• Open X-Embodiment: Robotic learning datasets and RT-X models.

• Rt-2: Vision-language-action models transfer web knowledge to robotic control.

• Tinyvla: Towards fast, data-efficient vision-languageaction models for robotic manipulation

• Diffusion policy: Visuomotor policy learning via action diffusion

• Scaling diffusion policy in transformer to 1 billion parameters for robotic manipulation.

• Playground v3: Improving text-to-image alignment with deep-fusion large language models

• Transfusion: Predict the next token and diffuse images with one multi-modal model.
