BLIP-2: Bootstrapping Language-Image Pre-training with Frozen Image Encoders and Large Language Models

Vision-Language Pre-training

Given the existence of powerful language models (LLMs) and image encoders, a natural progression is to integrate them.

To prevent catastrophic forgetting, LLMs are often frozen, which can make training difficult.

Flamingo uses an image-to-text generation loss, which is often insufficient to bridge the modality gap effectively.
To achieve effective vision-language alignment with frozen unimodal models, we propose a Querying Transformer (QFormer) pre-trained with a new two-stage pre-training strategy.
This module is designed to select important information from images to feed into the LLM.
The advantage is that it uses fewer trainable parameters, leading to greater efficiency.

Method

The training is divided into two stages:

Vision-language representation learning stage
Vision-to-language generative learning stage

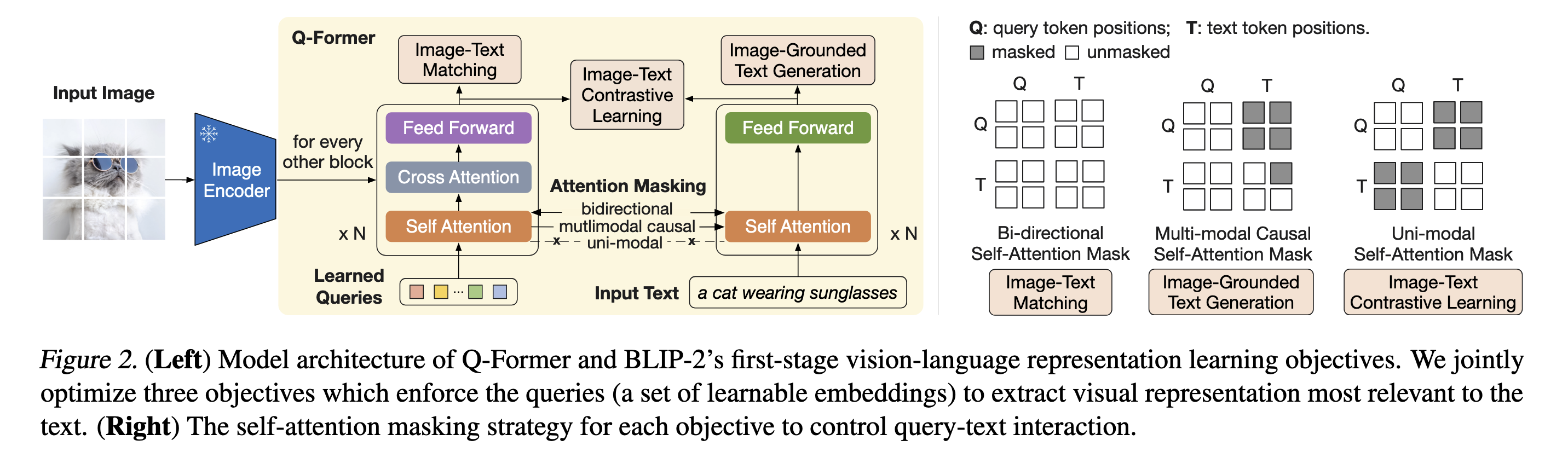

fig2

Q-Former Architecture

The model features two Transformer networks, each with N layers. One processes images, and the other processes text.
The image model’s input consists of 32 embedding as query tokens. These queries extract information from image tokens via cross-attention, which is inserted every other layer.
The image branch and text branch share the same self-attention layers. However, the text branch does not have cross-attention, and the feed-forward network (FFN) parameters differ between the two branches.
The model parameters are initialized using bert-base.

This bottleneck architecture, combined with our pre-training objectives, forces the queries to extract visual information most relevant to the text.

Three Training Objectives

The model is optimized simultaneously using three training objectives:

Image-Text Contrastive Learning: Similar to CLIP, this objective maximizes the similarity of positive image-text pairs.
- The [CLS] token is selected as the text embedding.
- An image token with the highest similarity to the text embedding is chosen as the image embedding.
- During self-attention, the two modalities cannot attend to each other.
Image-grounded Text Generation: This involves the auto-regressive loss for the text branch.
- The [CLS] token is replaced with a new [DEC] token as the first text token to signal the decoding task.
- Query tokens are prevented from attending to text tokens.
Image-Text Matching
- Each output query embedding is fed into a two-class linear classifier to obtain a logit. These logits are then averaged across all queries to produce the output matching score.
- It is a binary classification task where the model is asked to predict whether an image-text pair is matched or unmatched.

We remove the last layer of the Vision Transformer (ViT) and use the output features from the second-to-last layer, which leads to slightly better performance.

references

OFA: Unifying Architectures, Tasks, and Modalities Through a Simple Sequence-to-Sequence Learning Framework
Flamingo: a Visual Language Model for Few-Shot Learning
Align before fuse: Vision and language representation learning with momentum distillation.
BLIP: bootstrapping language-image pre-training for unified visionlanguage understanding and generation.
