NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis

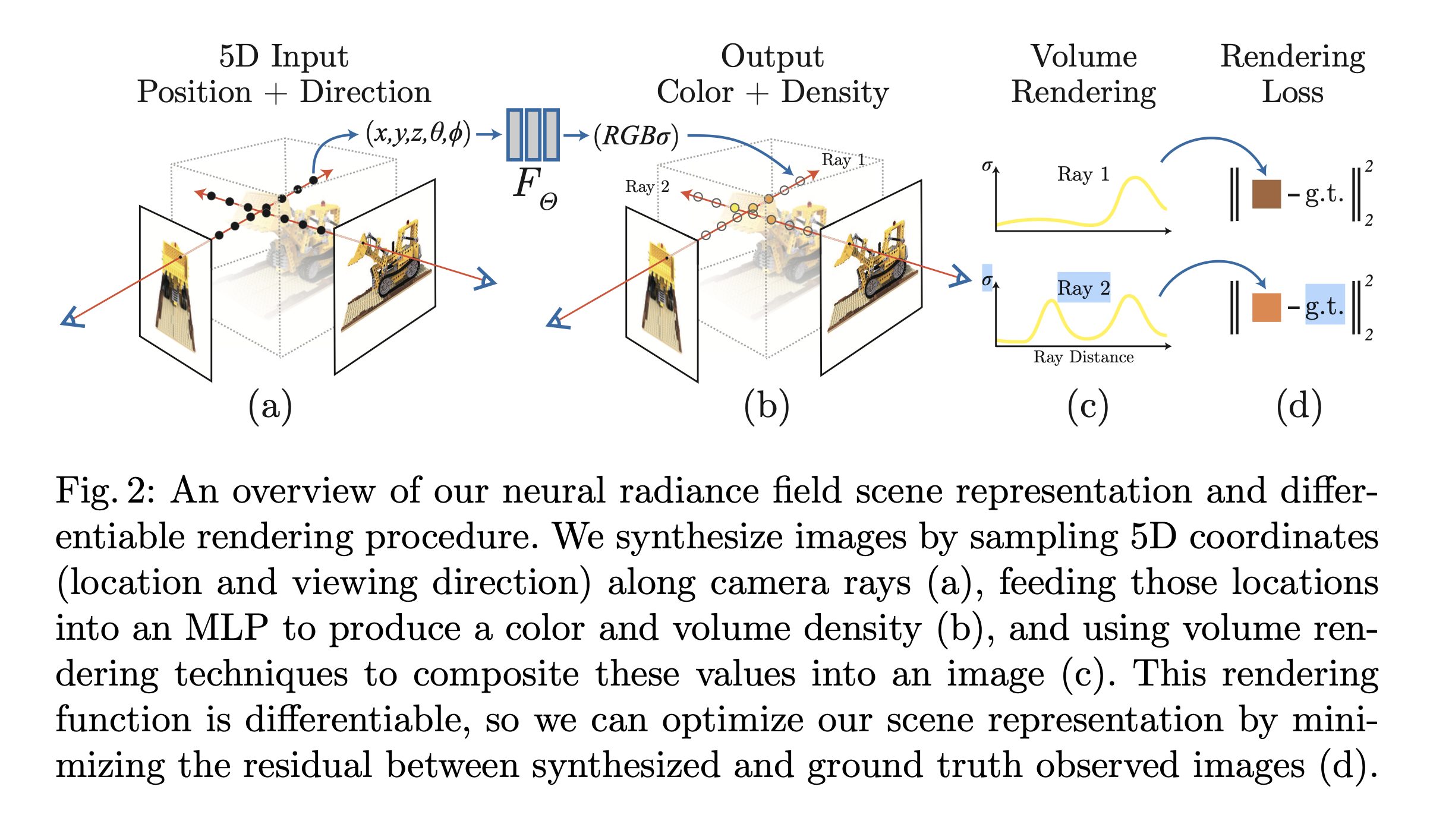

The core method of this approach is to represent a 3D scene using a Multilayer Perceptron (MLP). The network takes a 3D position and a viewing direction as input and outputs the corresponding color and volume density.

Given the focal length and the camera’s image plane, a ray is cast from the camera through each pixel. Along this ray, a series of points are sampled. These points, along with the direction of the ray, are fed into the MLP. The outputs are then integrated using a volume rendering formula to determine the final color of the pixel. The model is trained using a Mean Squared Error (MSE) loss between the rendered pixel and the ground truth.

fig2

Density ( $\sigma$ ) controls the opacity of a point and how much it obscures points behind it.
A coarse-to-fine strategy using two networks speeds up the sampling process.
Positional encoding transforms scalar coordinates into high-dimensional vectors, allowing the MLP to represent high-frequency details.
This method is more storage-efficient than high-resolution voxel grids.
The primary application is Novel View Synthesis.

Neural networks can be used to record textures or indirect illumination within 3D scenes.

Neural 3D Shape Representations

Some methods record a Signed Distance Function (SDF), representing the shortest distance to an object’s surface.
Others record an occupancy field, representing the probability that a coordinate is inside an object.
Differentiable rendering functions allow training using only 2D images without 3D ground truth.
A major limitation of these methods is their inability to represent complex geometry or high-frequency details.

Mesh and Voxel Approaches

One can start with an initial mesh (like a sphere) and deform it using differentiable rendering. However, gradient-based mesh optimization is often difficult.
Voxel-based methods avoid mesh issues but suffer from high memory costs, which limits resolution.

Method

The MLP takes a 3D position $(x, y, z)$ and a 2D viewing direction $(\theta, \phi)$ as input.

Input Generation

Rays are cast from the pixel origin into the scene in random directions.

MLP Output

The network outputs emitted color $(r, g, b)$ and volume density $\sigma$ .
To ensure multi-view consistency, density depends only on the 3D position. The first 8 layers of the MLP process only the position to output a 256-dimensional feature vector and the density.
This feature vector is then concatenated with the viewing direction and passed through one additional layer to produce the view-dependent RGB color.

Volume Rendering

The color of a ray $C(r)$ is calculated as:

C(r) = \int_{t_n}^{t_f} T(t) \sigma(r(t)) c(r(t), d) dt

$t_n, t_f$ are the near and far bounds.
$T(t)$ is the probability that the ray travels from $t_n$ to $t$ without being obstructed.
$r(t)$ is the ray equation; $d$ is the viewing direction.
$\sigma(r(t))$ is the volume density.
$c(r(t), d)$ is the color.

In simple terms, the integral is the product of:

The probability of the ray reaching a point (occlusion).
The density at that point (how much light it absorbs/contributes).
The color at that point.

To approximate this integral numerically, $N$ points are sampled by dividing the space between the near and far bounds into $N$ bins and sampling uniformly within each bin. This randomness helps the MLP learn a continuous function.

Discretization

The integral is approximated using a discrete sum:

\hat{C}(r) = \sum_{i=1}^N T_i (1-\exp(-\sigma_i \delta_i))c_i

$\exp(-\sigma_i \delta_i)$ represents the transparency of a small segment.
$\delta_i$ is the distance between adjacent samples.
$\sigma_i$ is the volume density at the $i$ -th sample.
The exponential term comes from the limit of probability. If the probability of being hit in a tiny segment $\Delta x$ is $\sigma \Delta x$ , then the probability of passing through a total thickness $\delta$ is $(1 - \sigma \frac{\delta}{N})^N$ . As $N \to \infty$ , this becomes $\exp(-\sigma \delta)$ .

Implementation Details

Positional Encoding: To capture high-frequency details, scalars are encoded into 20-dimensional vectors using sine and cosine functions.

Hierarchical Volume Sampling: Two MLPs (coarse and fine) are used. The coarse network is sampled first. The resulting weights $T * (1 - \exp(-\sigma \delta))$ create a probability density function (PDF). More points are then sampled from this PDF for the fine network. Finally, all samples are rendered through the fine network.

Training

Data Requirements: Camera intrinsics/extrinsics, multi-view RGB images, and scene bounds.
Batch Size: 4096 rays.
Sampling: 64 samples for the coarse network, 128 for the fine network.
Optimizer: Adam (initial learning rate 5e-4, decaying exponentially to 5e-5).
Time: Convergence takes 100k–300k iterations (roughly 1–2 days on a single NVIDIA V100).

Results

Baseline Methods

Neural Volumes: Limited by voxel grid resolution; lacks fine detail.
Scene Representation Networks: Produces overly smooth geometry and textures.
Local Light Field Fusion (LLFF): Fast training (10 mins) but requires significant storage for voxel grids and can produce artifacts.

Evaluation Metrics

PSNR: Measures pixel-level differences.
SSIM: Measures structural, brightness, and contrast similarity (closer to human perception).
LPIPS: Compares image features using pre-trained models.

Ablation Study

Positional encoding significantly improves PSNR.
Including viewing direction as an MLP input is the most critical factor for realism.
Hierarchical sampling provides a modest performance boost.
NeRF is highly data-efficient; even with only 25 images, it outperforms other methods using 100 images.
Changing the number of frequencies ( $L$ ) in positional encoding: $L=5$ reduces performance, while $L=15$ shows no further gain, likely because it exceeds the frequency of the input images.

references

Learning a neural 3d texture space from 2d exemplars
Neural BTF compression and interpolation.
Texture fields: Learning texture representations in function space
Global illumination with radiance regression functions.
DeepSDF: Learning continuous signed distance functions for shape representation
Local implicit grid representations for 3d scenes
Occupancy networks: Learning 3D reconstruction in function space
Differentiable volumetric rendering: Learning implicit 3D representations without 3D supervision
Scene representation networks: Continuous 3D-structure-aware neural scene representations.
DeepView: view synthesis with learned gradient descent

baseline methods

Neural volumes: Learning dynamic renderable volumes from images
Scene representation networks: Continuous 3D-structure-aware neural scene representations
Local light field fusion: Practical view synthesis with prescriptive sampling guidelines
